MH1000 Circular Loom

25mm - 500mm jacket making.
Working pressure can be from 3 bar to 40 bar.

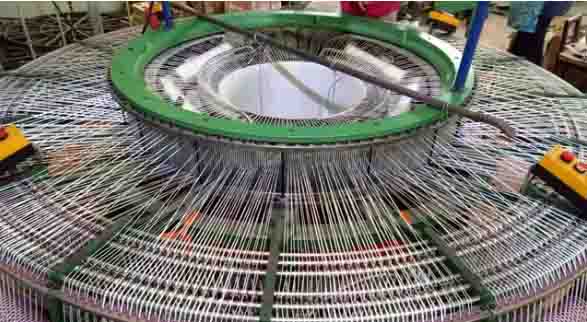

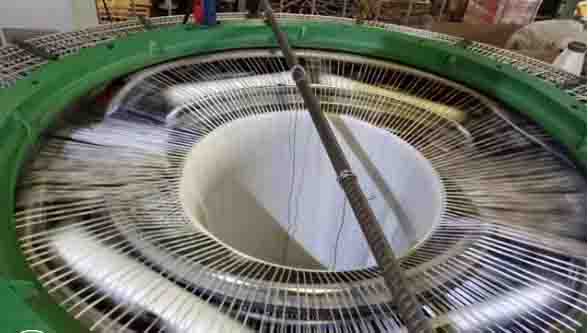

The circular loom is a machine that can continuously and efficiently produce yarn into a cylindrical braid through the warp and weft directions. The newly produced circular looms of our company are technically improved, innovated and developed. They have international advanced level and the performance indicators are obviously superior to other similar products.

Description

Machine list:

	Model	Qty.	Application	Note
1.	YZ250S	2 set	25-200mm jacket weaving	Yarn support frames and working platform are optional
2.	YZ500-2/3	2 set	200-500mm weaving	Yarn support frames and working platform are optional

YZ250S loom technical information:

YZ500 loom technical information：

Shuttle quantity（pcs）	2/3	Diameters （mm）	Ø250～550
Shuttle rotating diameter（mm）	1250	Motor power（kw）	11
Shuttle rotating speed（rpm）	95	Machine weight（kg）	2400
Maximum warp yarn quantity（根）	1302	Overall dimension（mm）	Ø2450×H850
Weft yarn pipe size（mm）	Ø110×L428

Shuttle quantity(pcs）	2	diameters（mm）	Ø25～250
Shuttle rotating diameter（mm）	840	Motor power（kw）	5.5
Shuttle rotating speed（rpm）	95	weight（kg）	1500
Maximum warp yarn quantity(pcs)	956	Overall dimension（mm）	Ø1850×H890
Weft yarn size（mm）	Ø98×L428
