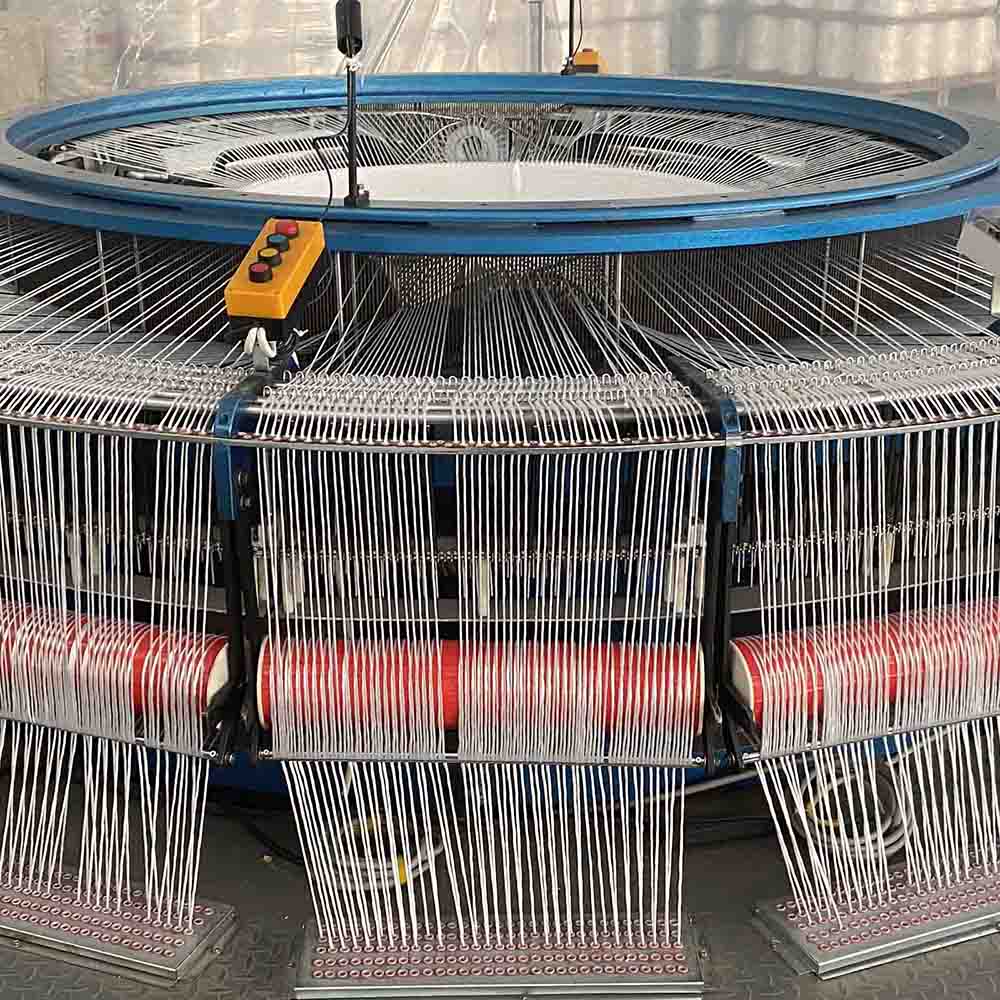

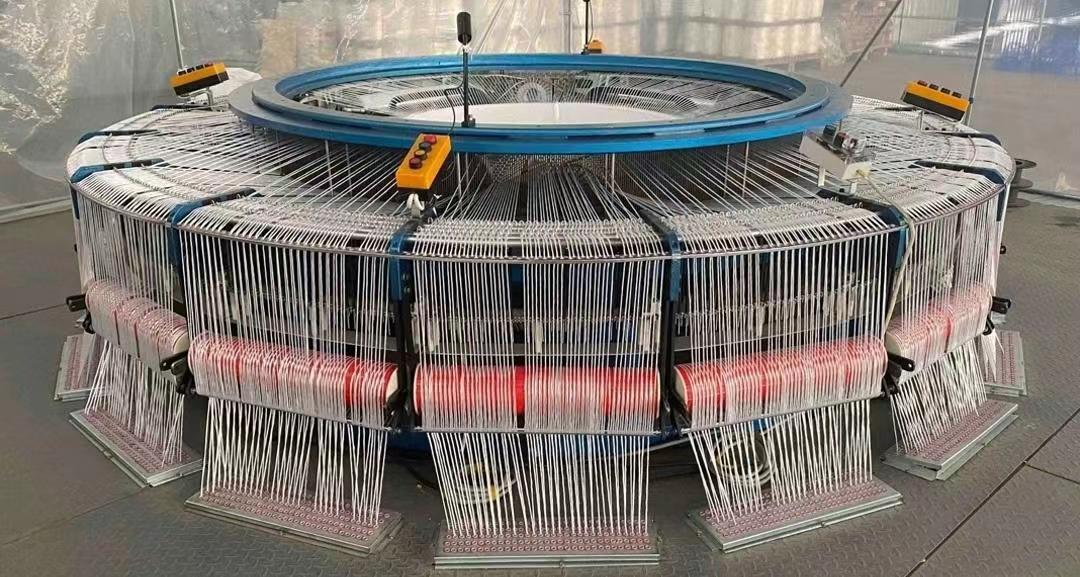

New developed large circular loom weaving diameter 200mm to 1000mm
we had sucessfully developed a new type circular loom for customer .
as their request polyester woven pipes diameter up to 1.1 m and appr. weight about 850 g/m2 , plain weave.
The fabric structure is follows:
Warp:
6.3 ends/см , PES multifilament yarn 2220 dtex Z 60
Weft:
5.0 ends/см, PES multifilament yarn 13200 dtex Z 25
as their request polyester woven pipes diameter up to 1.1 m and appr. weight about 850 g/m2 , plain weave.
The fabric structure is follows:
Warp:
6.3 ends/см , PES multifilament yarn 2220 dtex Z 60
Weft:
5.0 ends/см, PES multifilament yarn 13200 dtex Z 25
|
Description
main motor power :18.5KW-8P
Voltage:380v
Frequency:50hz
Pulling system motor speed ratio:240:1
shuttle nos:4 pcs
Max shuttle speed:40r/min
distrubuting yarn frame nos:1000
inradium foudation:1135mm
Maximum outer diameter of circular loom:3100mm
height of circular loom:825mm
weaving diameter:800-1000mm
standard die weaving mould and sector plate:900mm,1000mm
